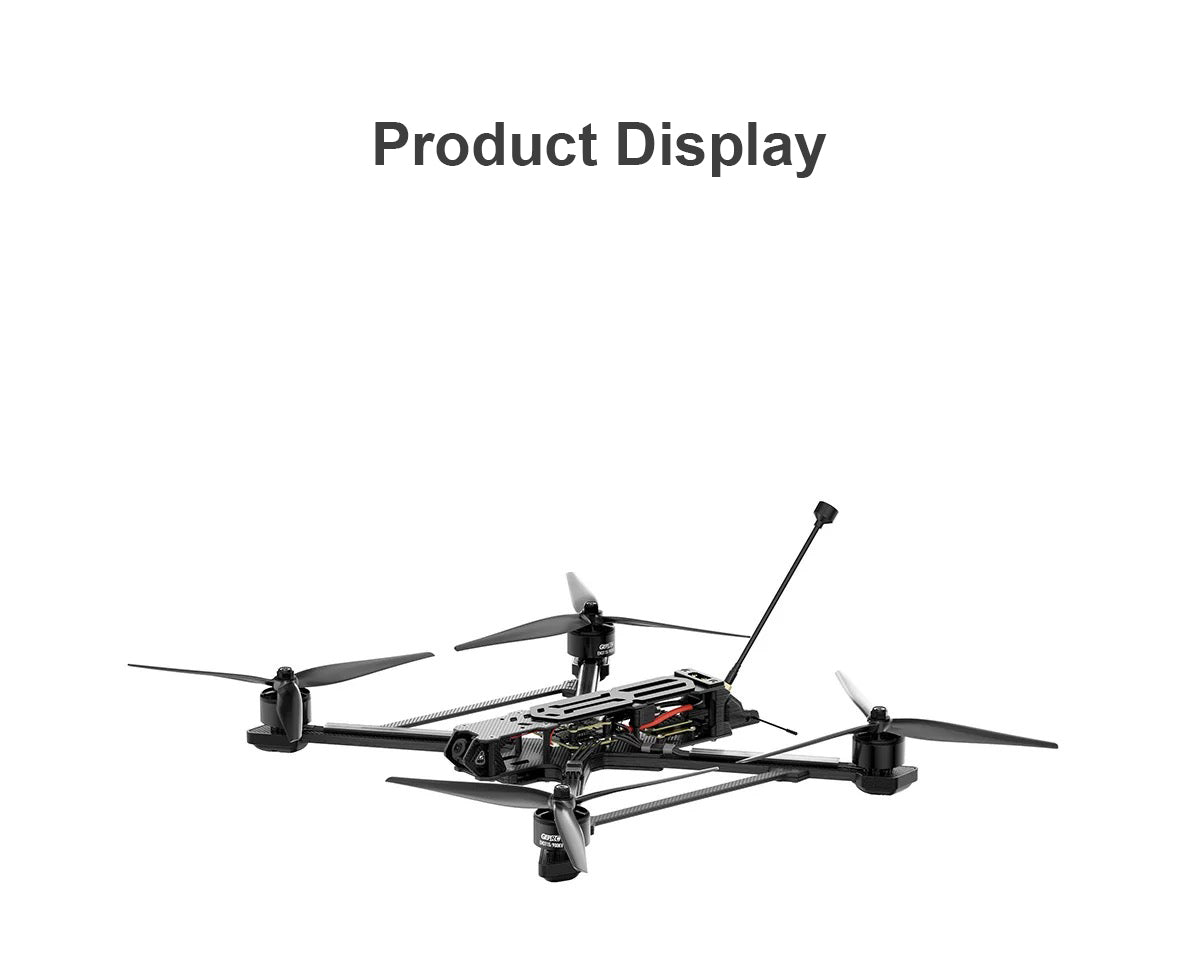

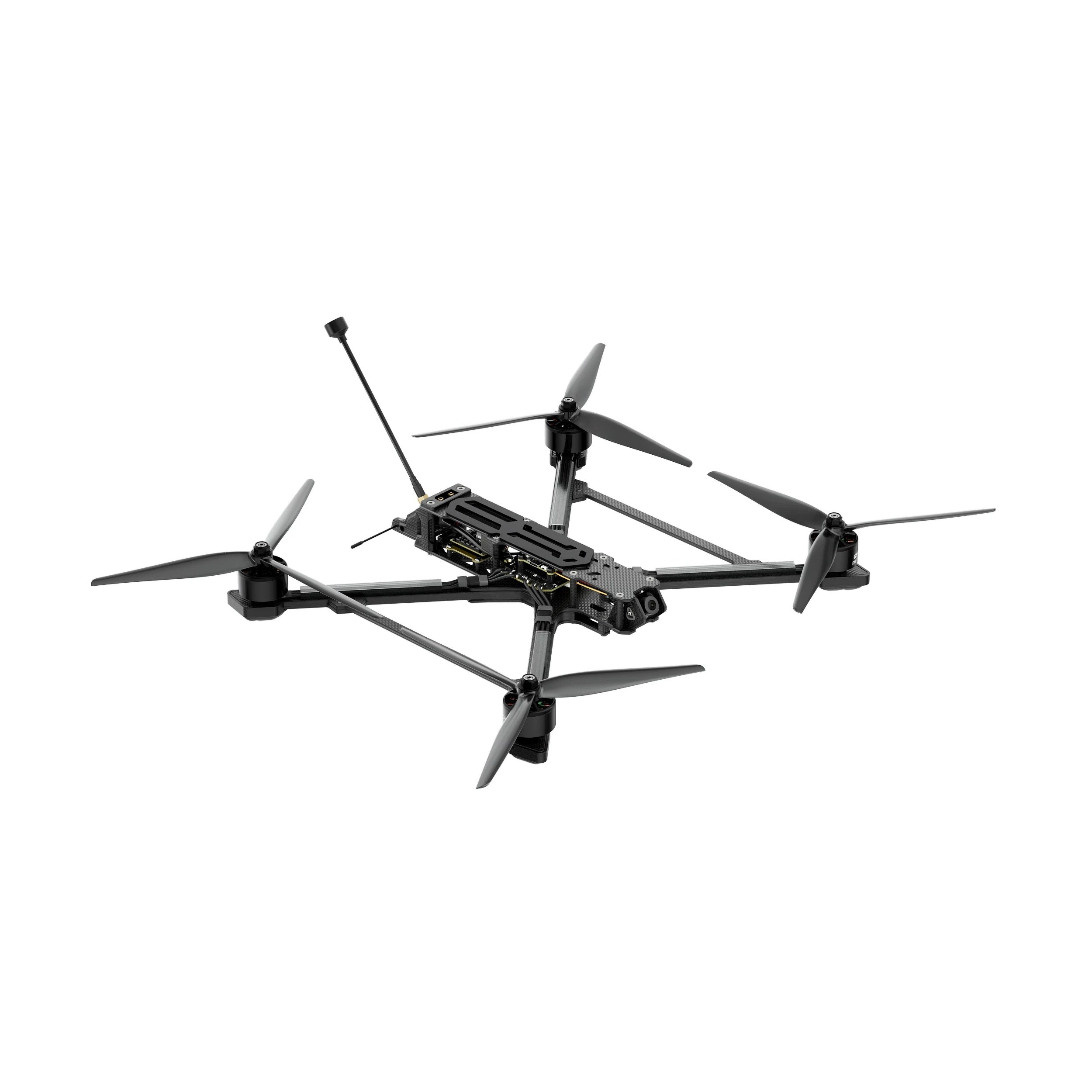

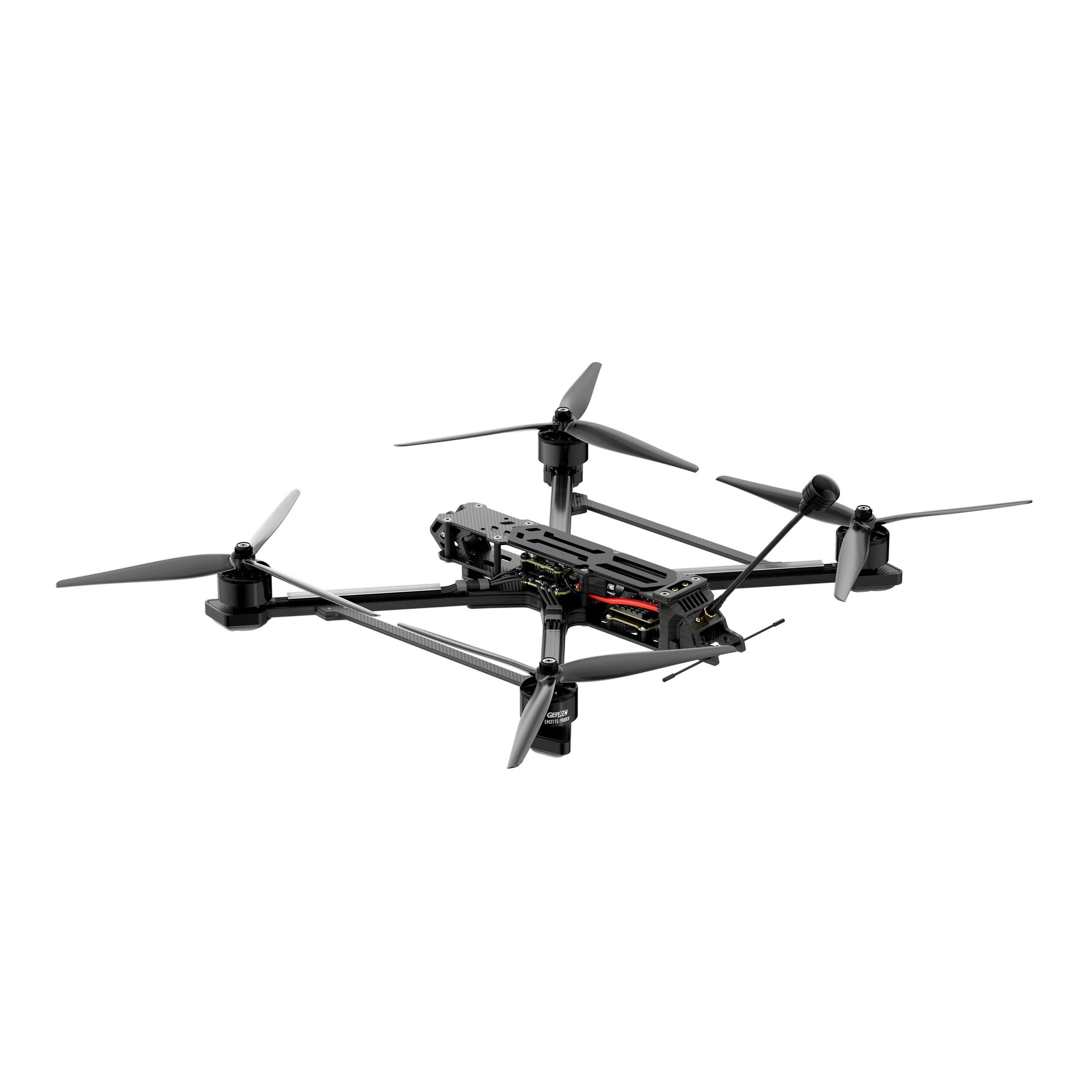

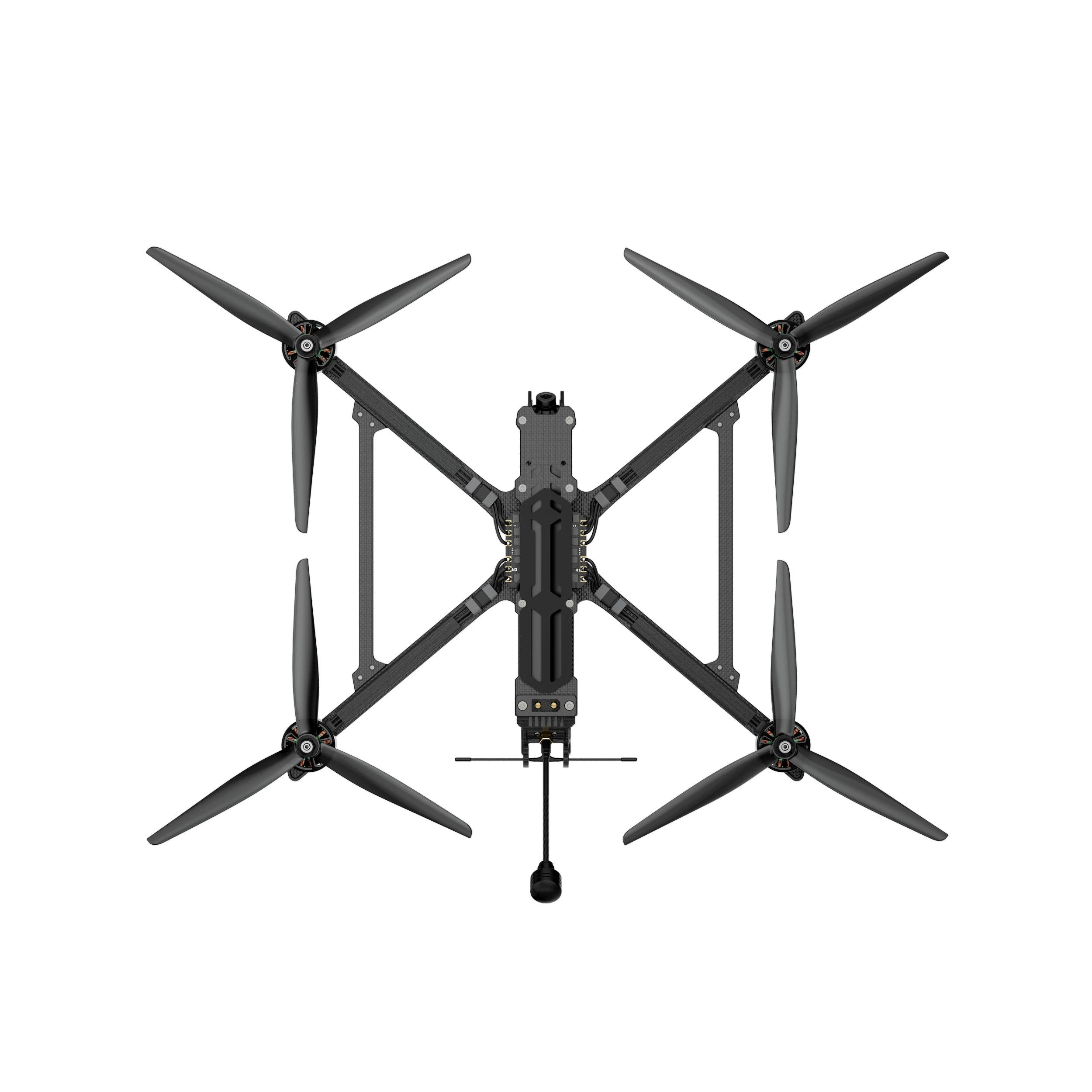

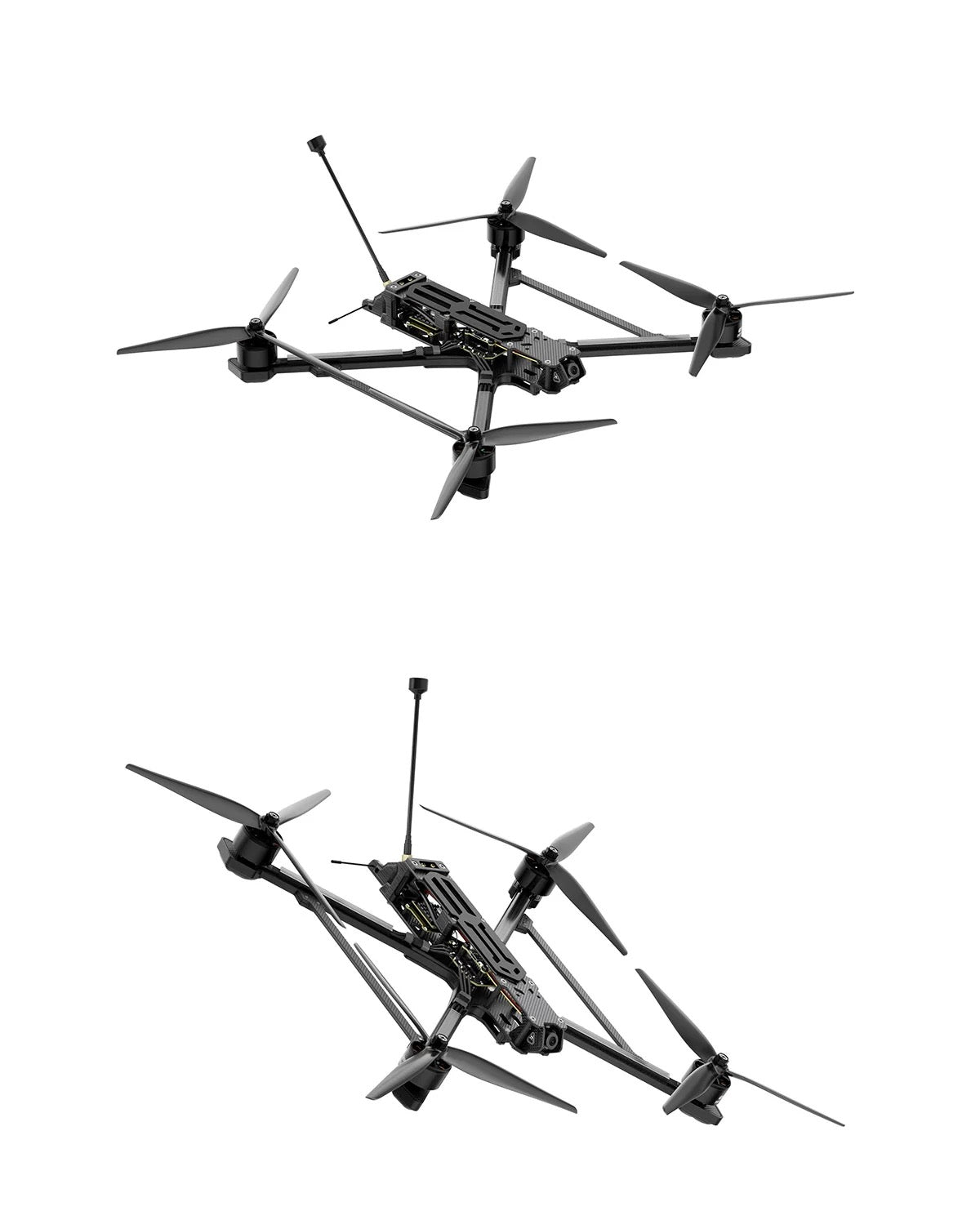

10" GEPRC EF10 Heavy Lift Analog FPV Drone, 3KG Payload, Caddx Ratel2, ELRS 2.4G/PNP
Within 15 days
We provide all the FPV parts of this item. Please select FPV / Color Green(FPV) / FPV Parts. Including Frames, Accessories, 3D Printed Parts, Propellers, Motors, Camera, VTX, Electronics, Receivers, Antenna. If you want it, pls contact us via chatbox.

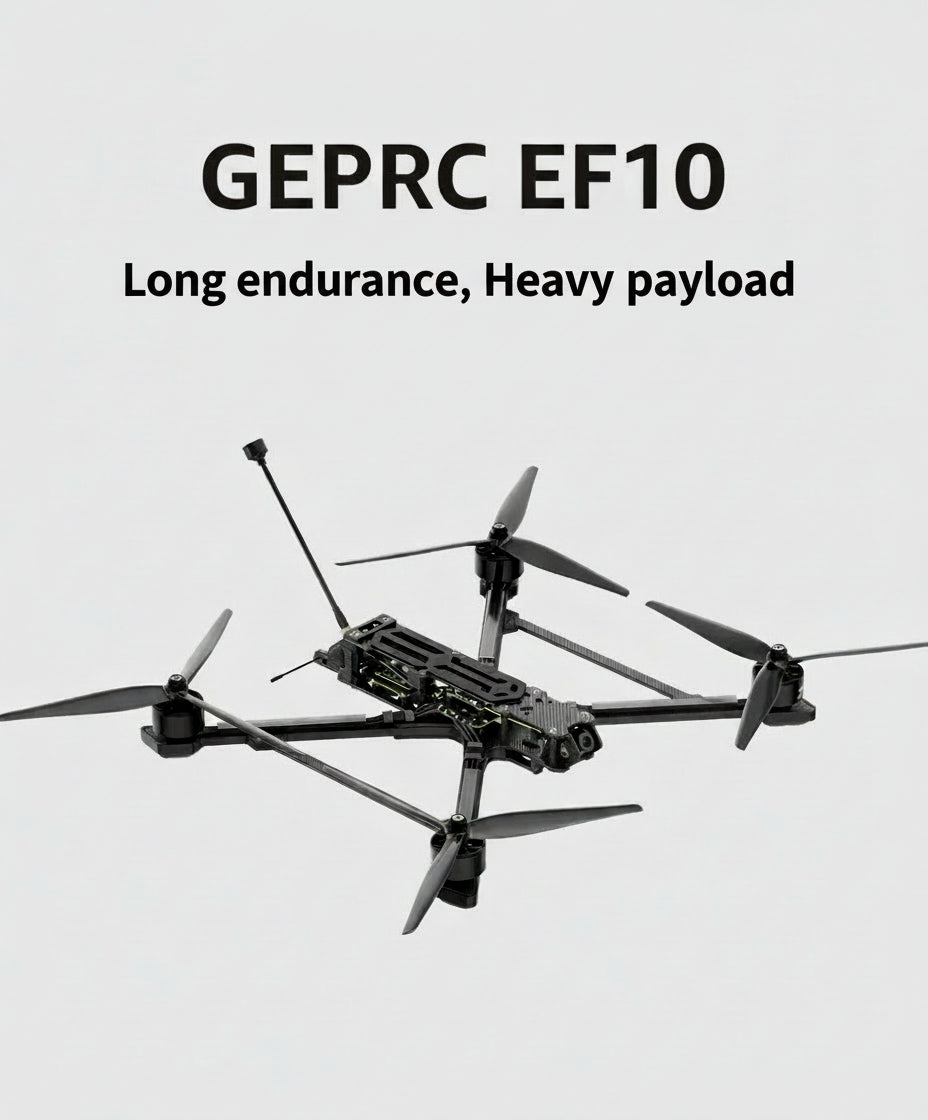

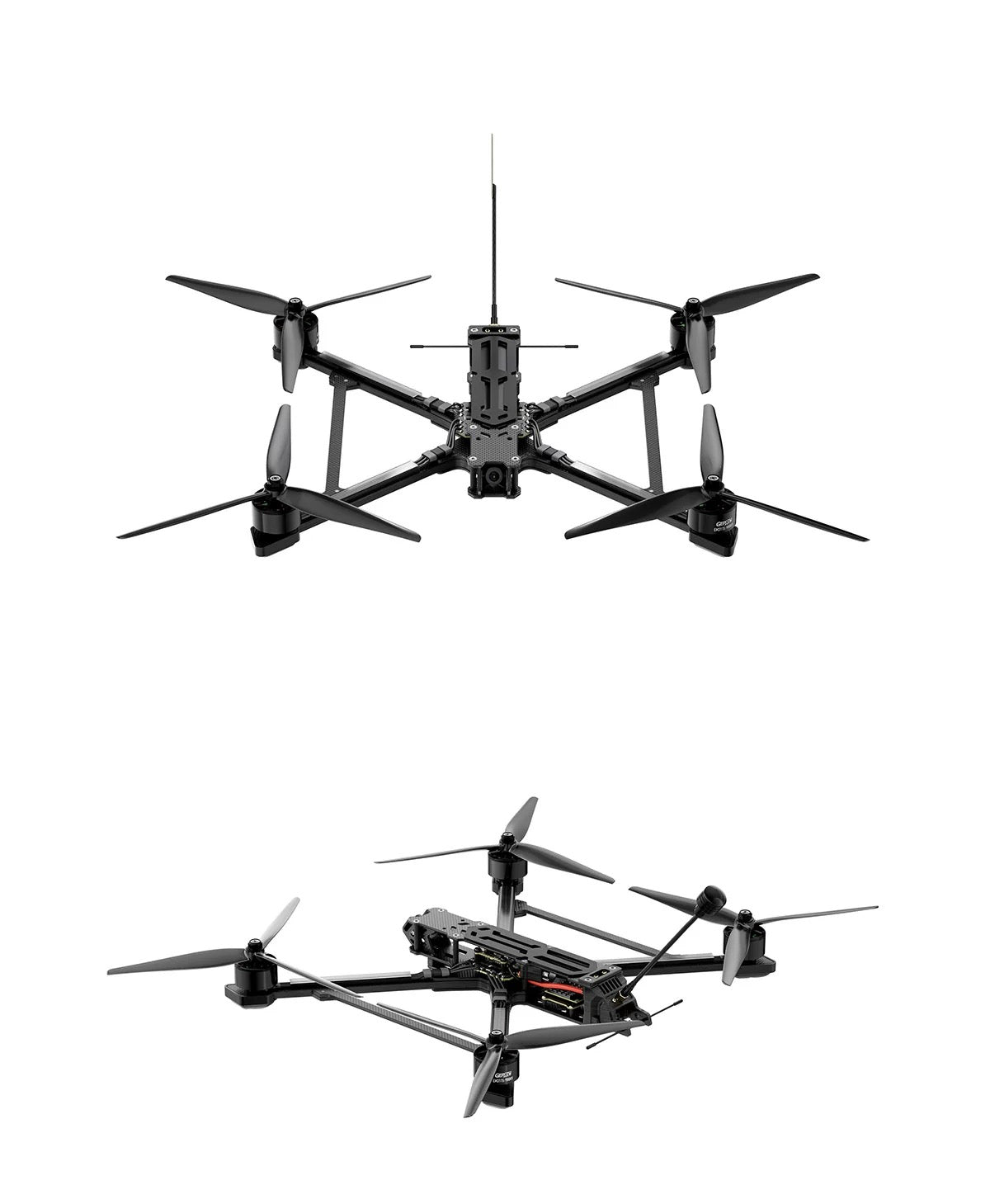

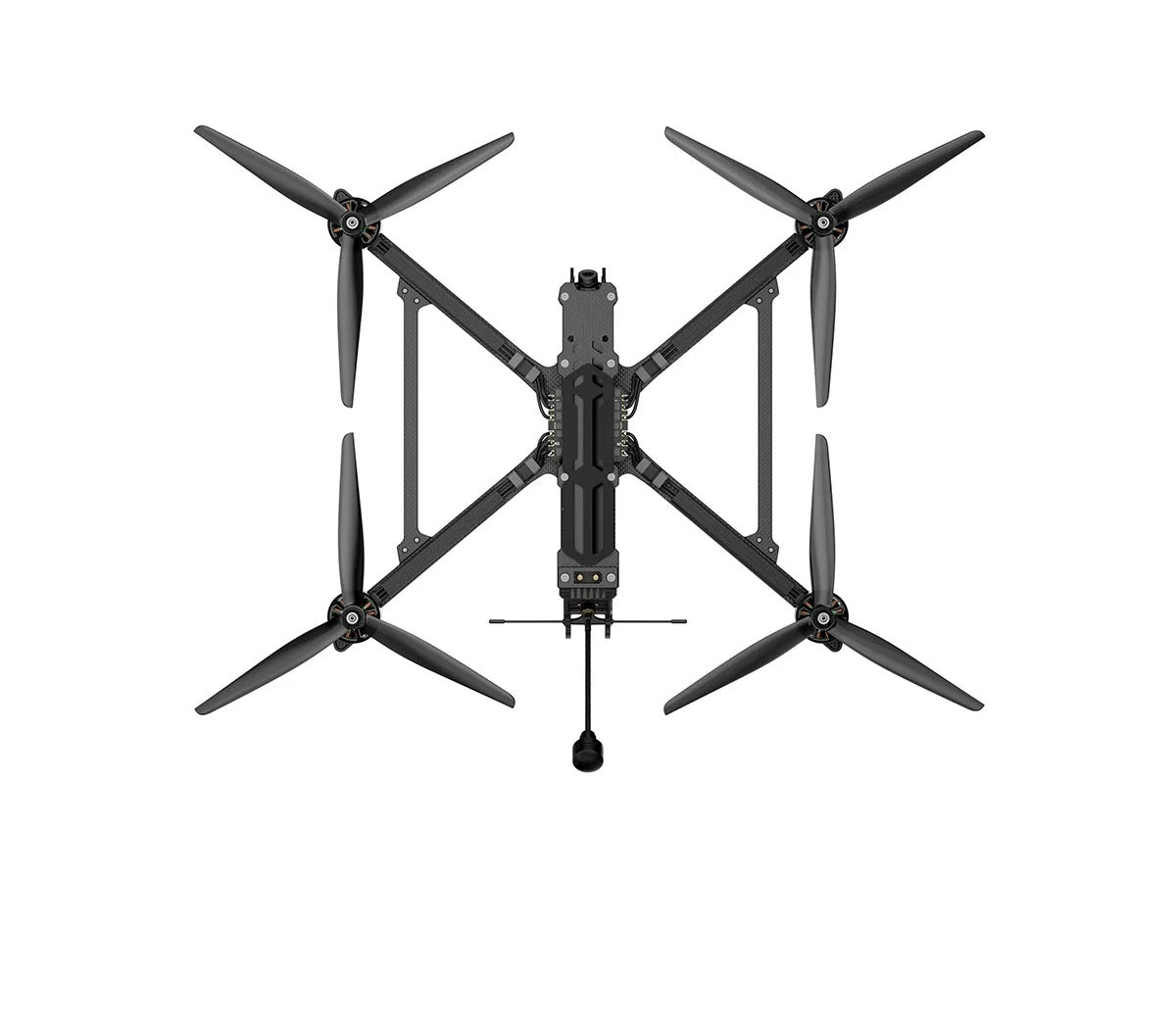

The GEPRC EF10 is a 10-inch heavy lift analog FPV drone built for demanding payload missions. With a 3KG standard payload capacity (4KG max), Caddx Ratel2 camera, RAD VTX 5.8G 2.5W, and a flight range of 5–7km, it delivers reliable performance for professional aerial work. Bluetooth tuning via SpeedyBee makes configuration fast and cable-free.

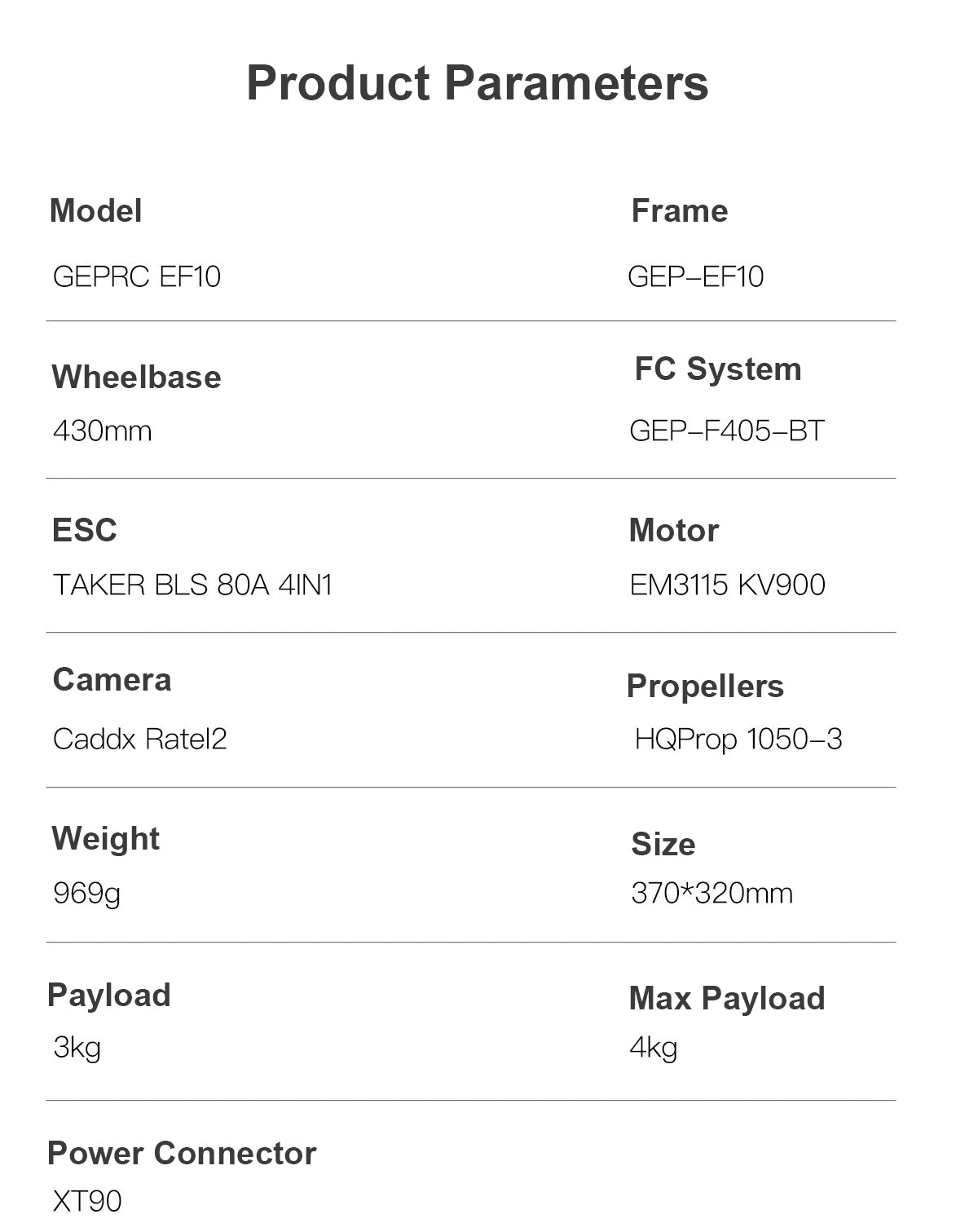

Specifications:
- Model: GEPRC EF10

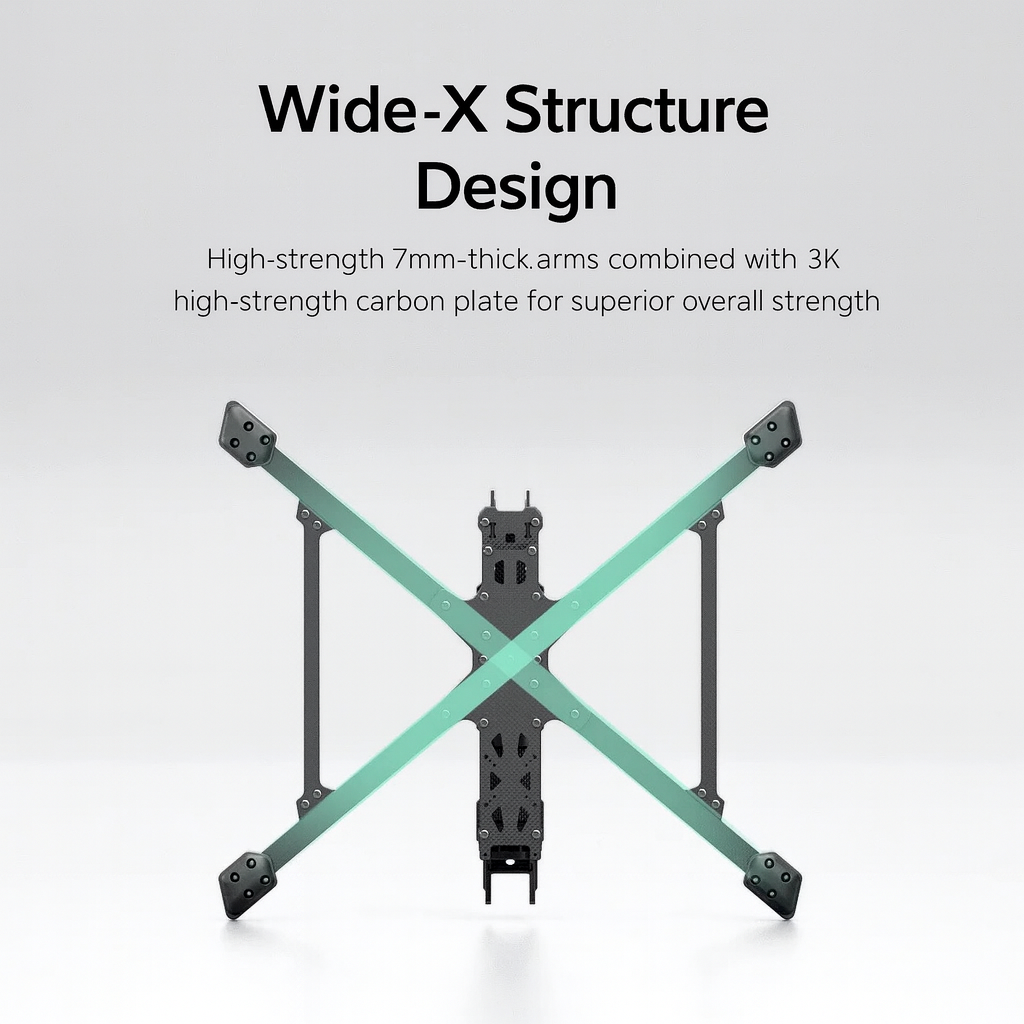

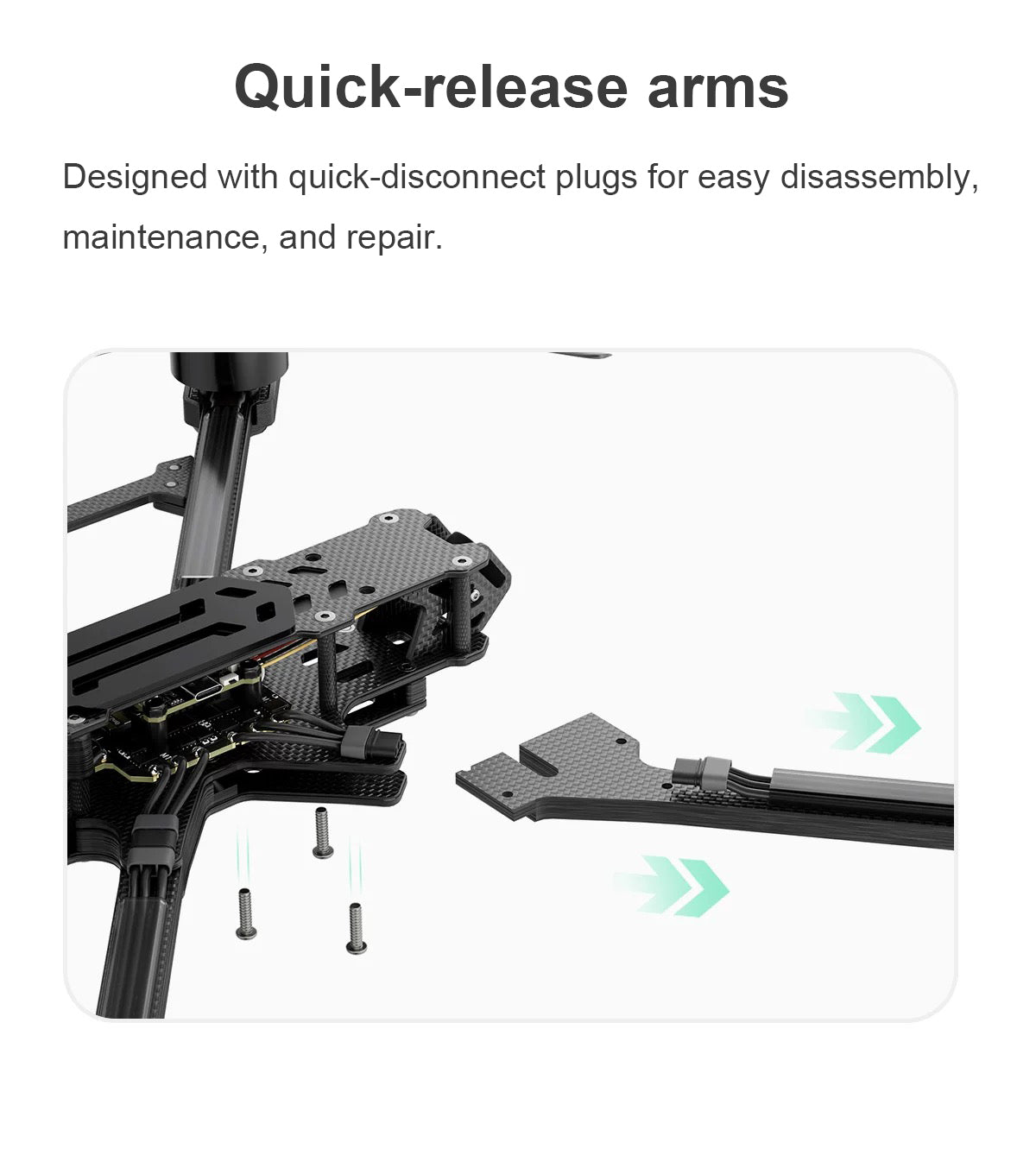

- Frame: GEP-EF10
- Wheelbase: 430mm
- FC System: GEP-F405-BT

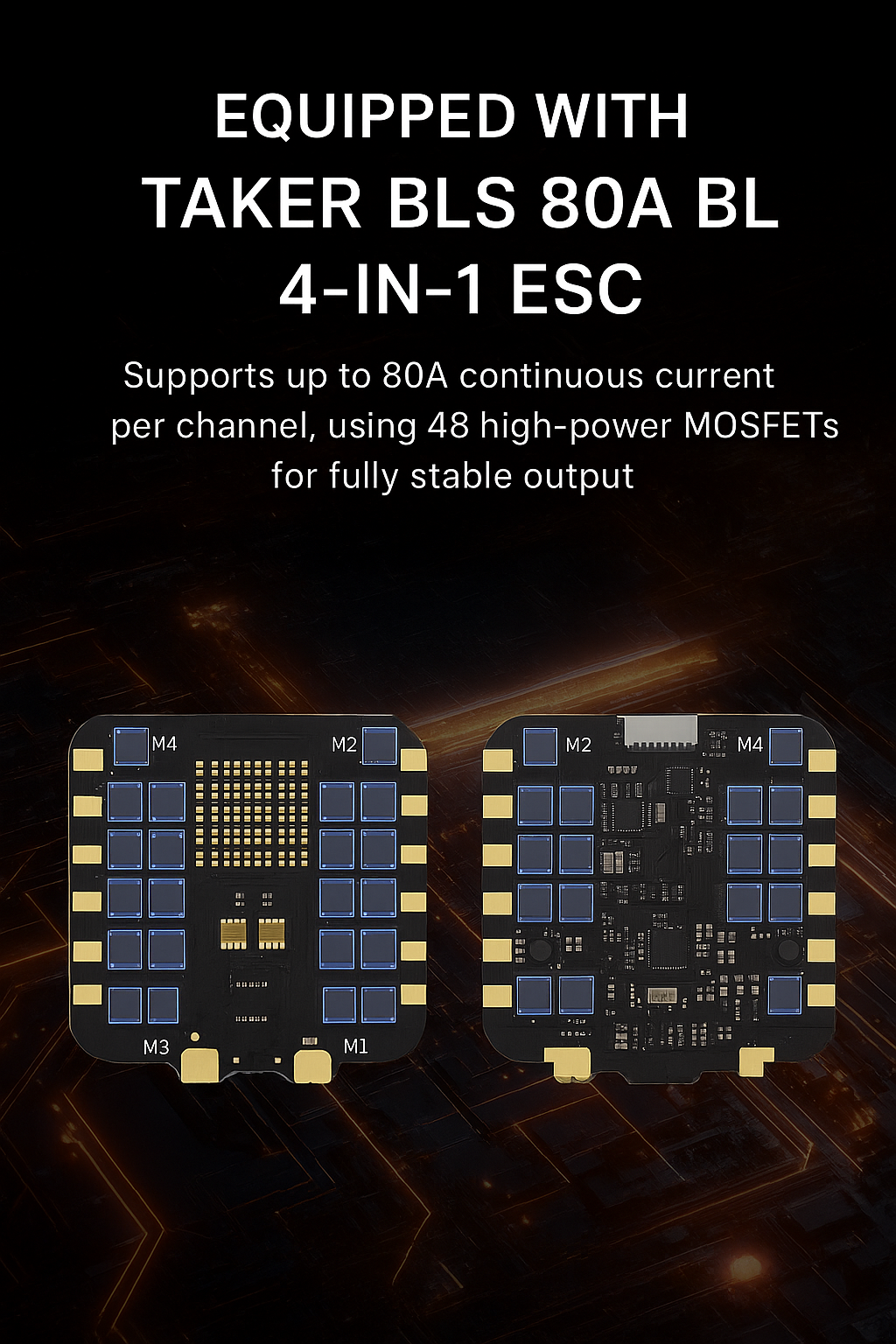

- ESC: TAKER BLS 80A 4IN1
- Motor: EM3115 KV900

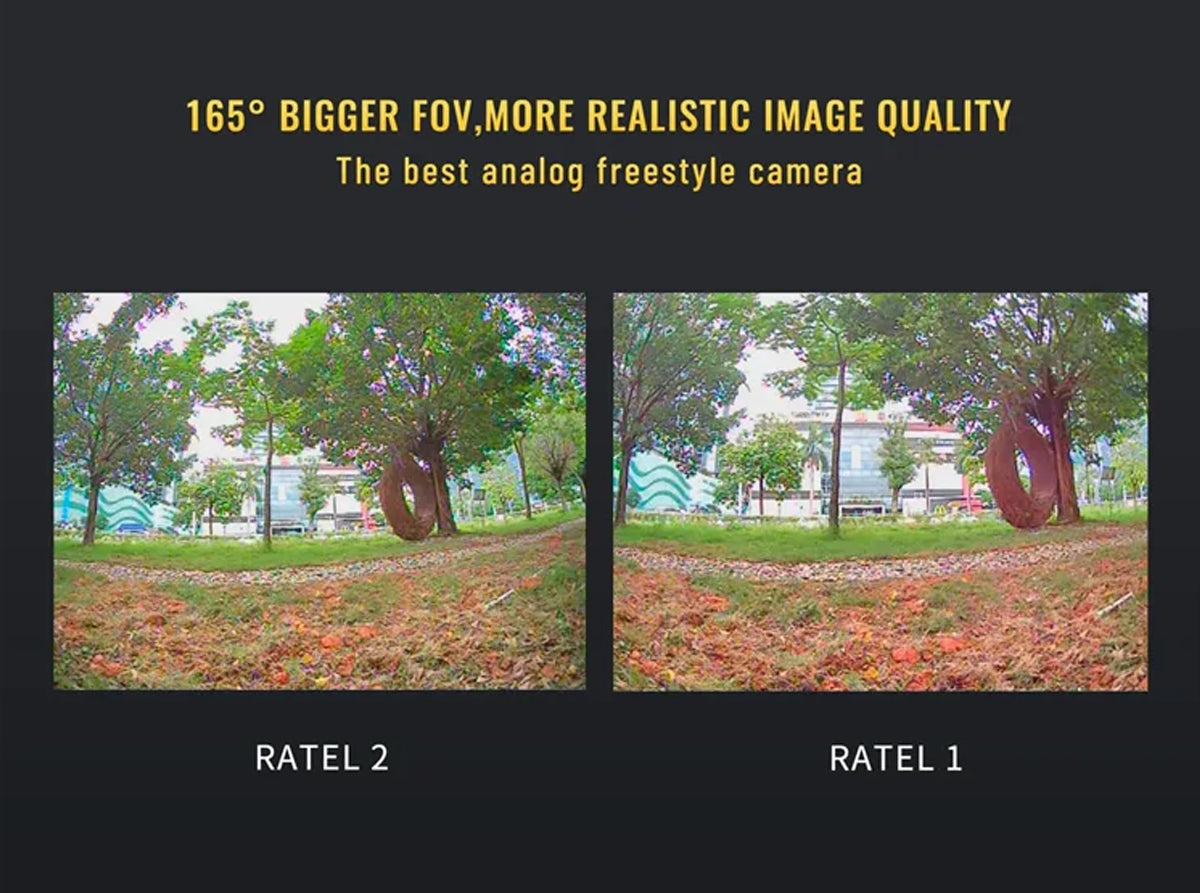

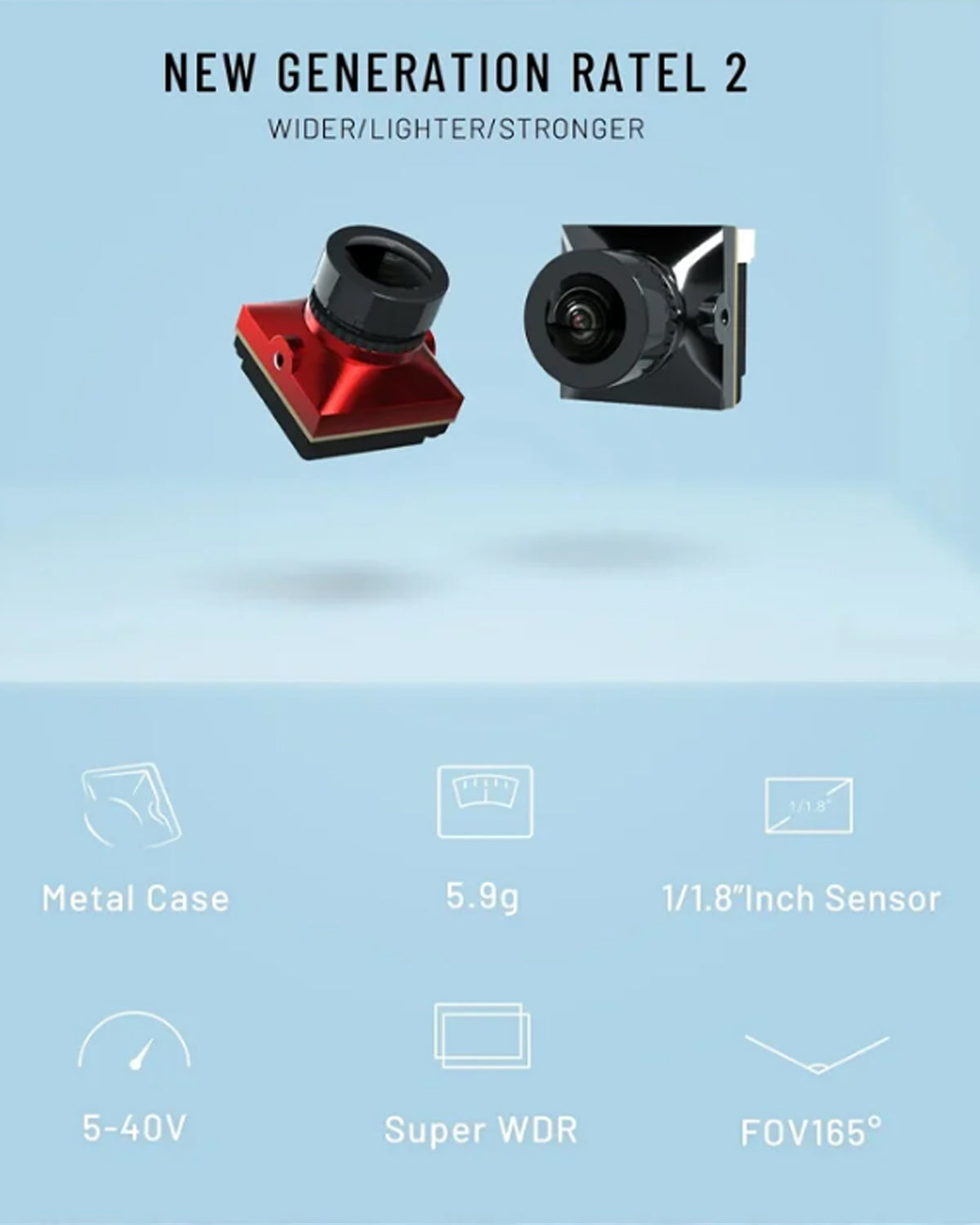

- Camera: Caddx Ratel2
- Propellers: HQProp 1050-3
- Weight: 969g
- Size: 370*320mm
- Payload: 3kg
- Max payload: 4kg

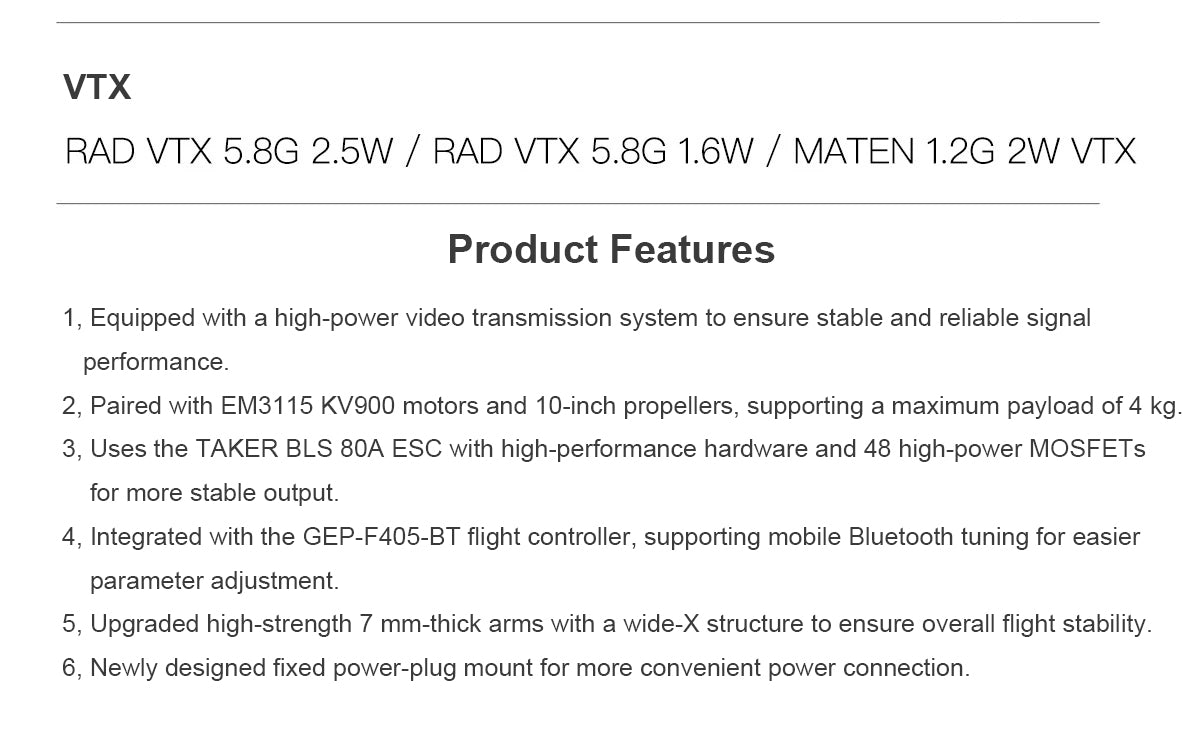

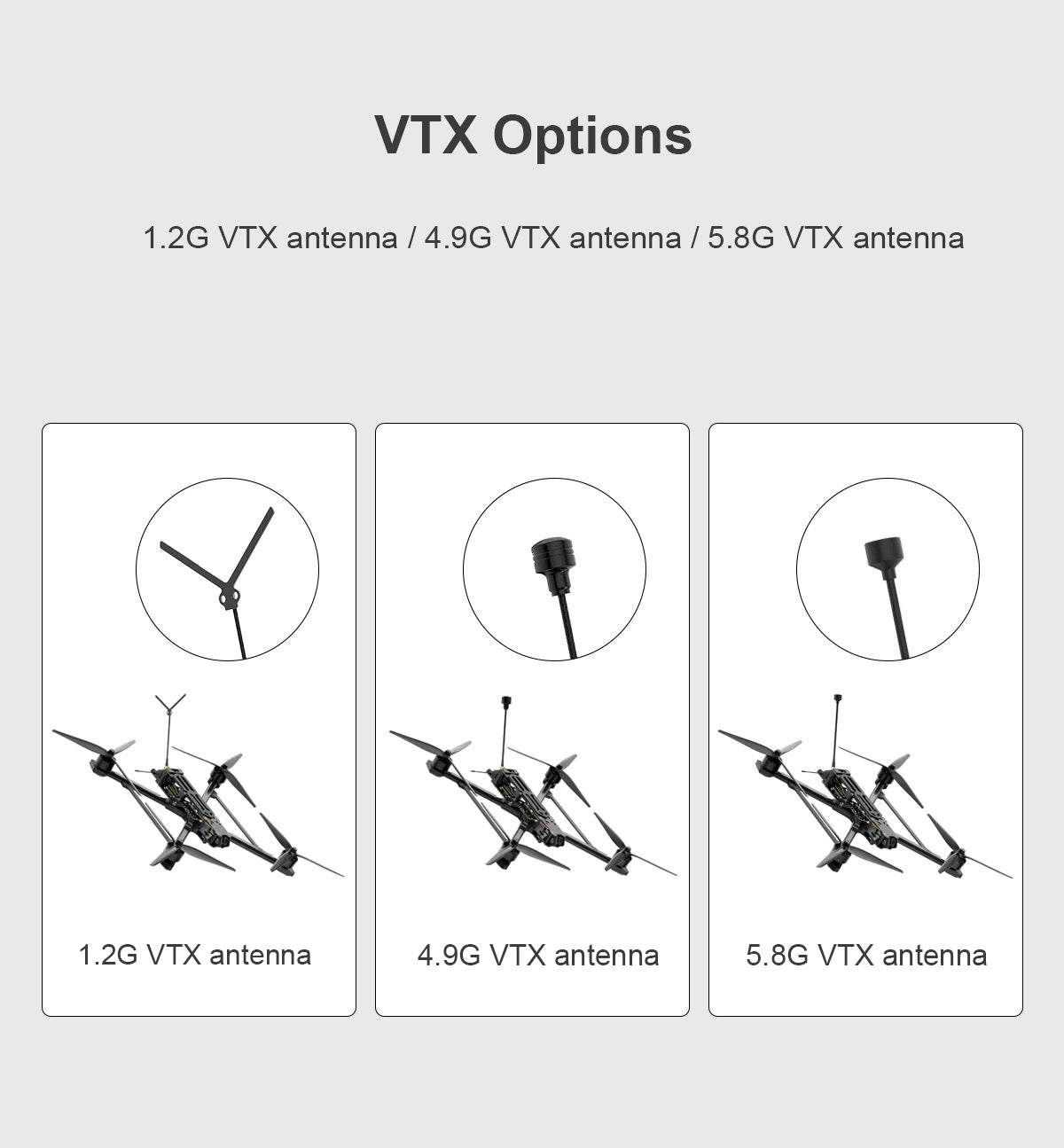

- VTX: RAD VTX 5.8G 2.5W
- Flight Distance: 5km–7km
- Flight Altitude: 2km
- Flight Time: 22 Min / Payload Flight Time (with 6S 5600mAh, 3.2kg)

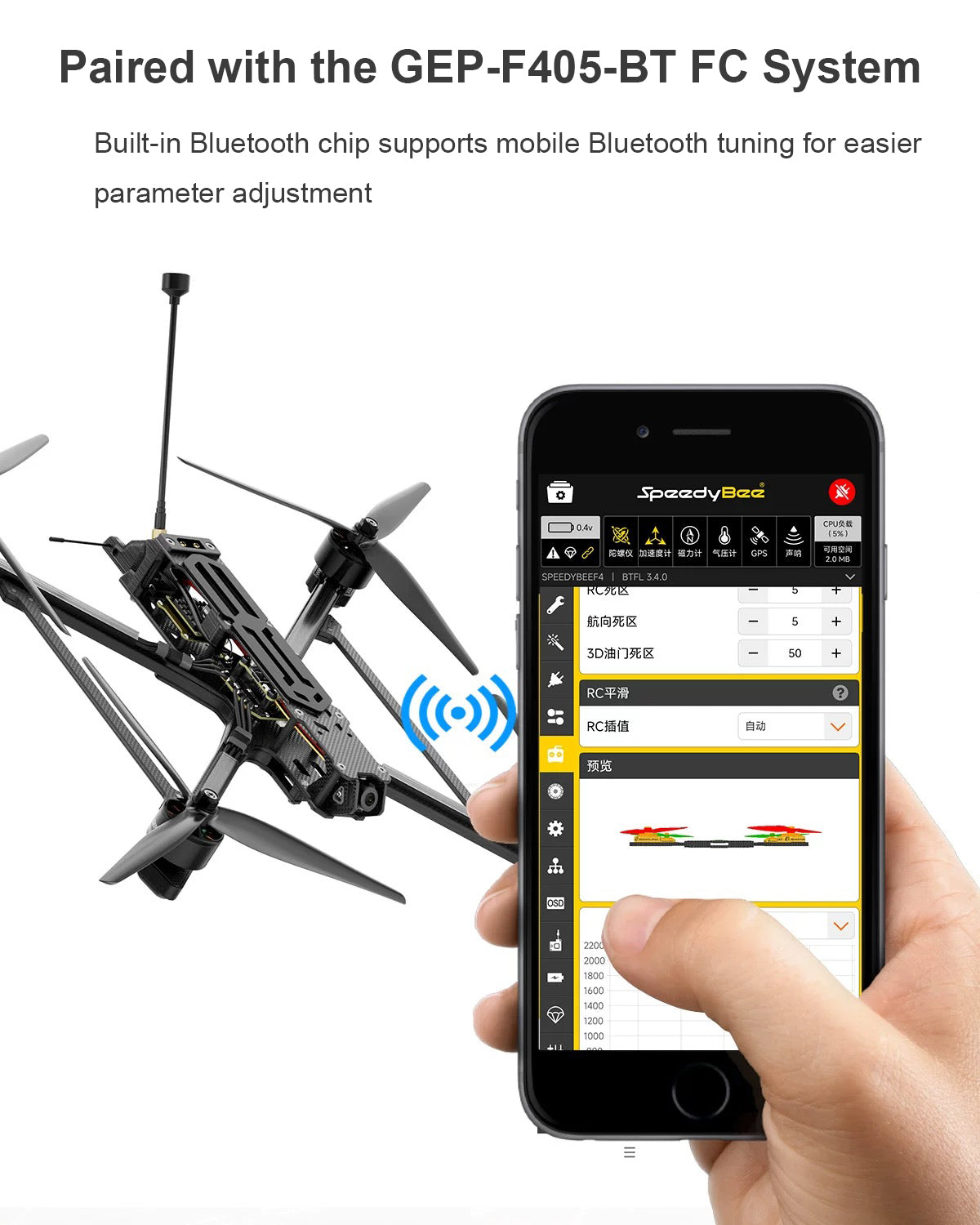

- Bluetooth Tuning: SpeedyBee (APP)
- Recommended Battery: LiPo 6S 5600mAh (XT90)
- Power Connector: XT90
