3.5" GEPRC CineLog35 V2 Analog FPV Drone with Caddx Ratel2

   This 3.5-inch CineLog35 V2 analog FPV drone combines a reinforced carbon fiber and 7075 aluminum frame with a Caddx Ratel2 camera for stable, cinematic footage. Equipped with a GEPRC F722-45A flight controller, SPEEDX2 2105.5 motors, and HQ DT90 propellers, it delivers powerful thrust, precise control, and reliable performance for both cinematic and freestyle flying.

Specifications

• Model: Cinelog35 V2 Analog
• Frame: GEP-CL35 V2
• Wheelbase: 142mm
• Gimbal Plate: 2.0mm
• Top Plate: 3.5mm
• Bottom Plate: 1.5mm
• FC system: GEP-F722-45A AIO V2
• MCU: STM32F722RET6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD w/AT7456E chip
• ESC: 8Bit 45A
• VTX: GEPRC RAD 1W(UFL)

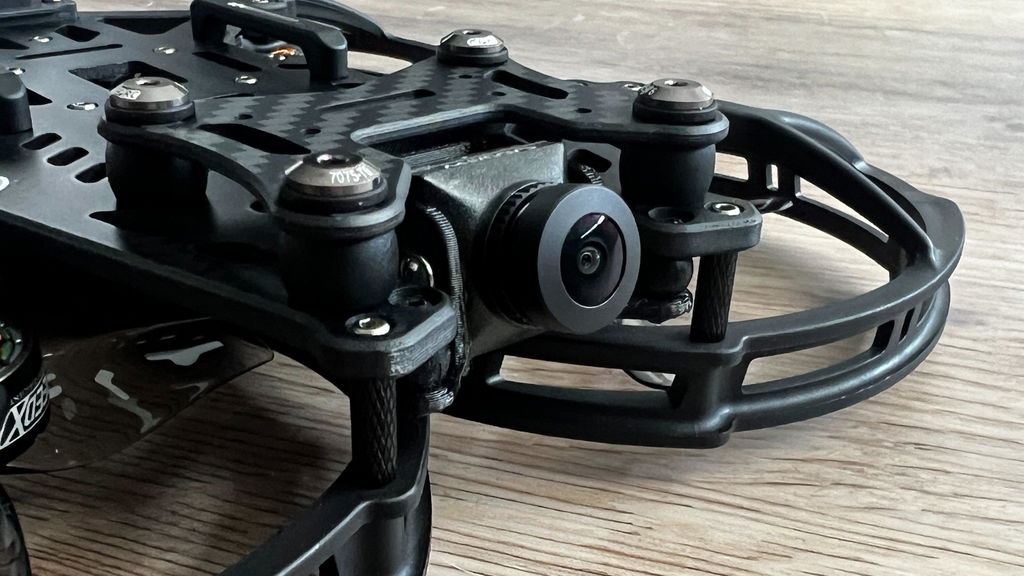

• Camera: Caddx Ratel2
• Antenna: GEPRC Peano 5.8 RHCP UFL
• Motor: SPEEDX2 2105.5-2650KV (6S)
• Propeller: HQProp D-T90MM
• GPS: GEP-M10
• CineLog35 V2 Analog TBSNanoRX weight: 263.8g
• Receiver: ELRS2.4G

• Flight time: 5′00″ -8′ 30″
• Recommended Battery: LiPo 6S 1300mAh

• Power connector: XT60

Description

The GEPRC CineLog35 V2 Analog FPV Drone represents the culmination of GEPRC’s continuous innovation and refined craftsmanship. Building upon years of flight experience and user feedback, the CineLog35 V2 delivers a significant leap in performance, structure, and usability.

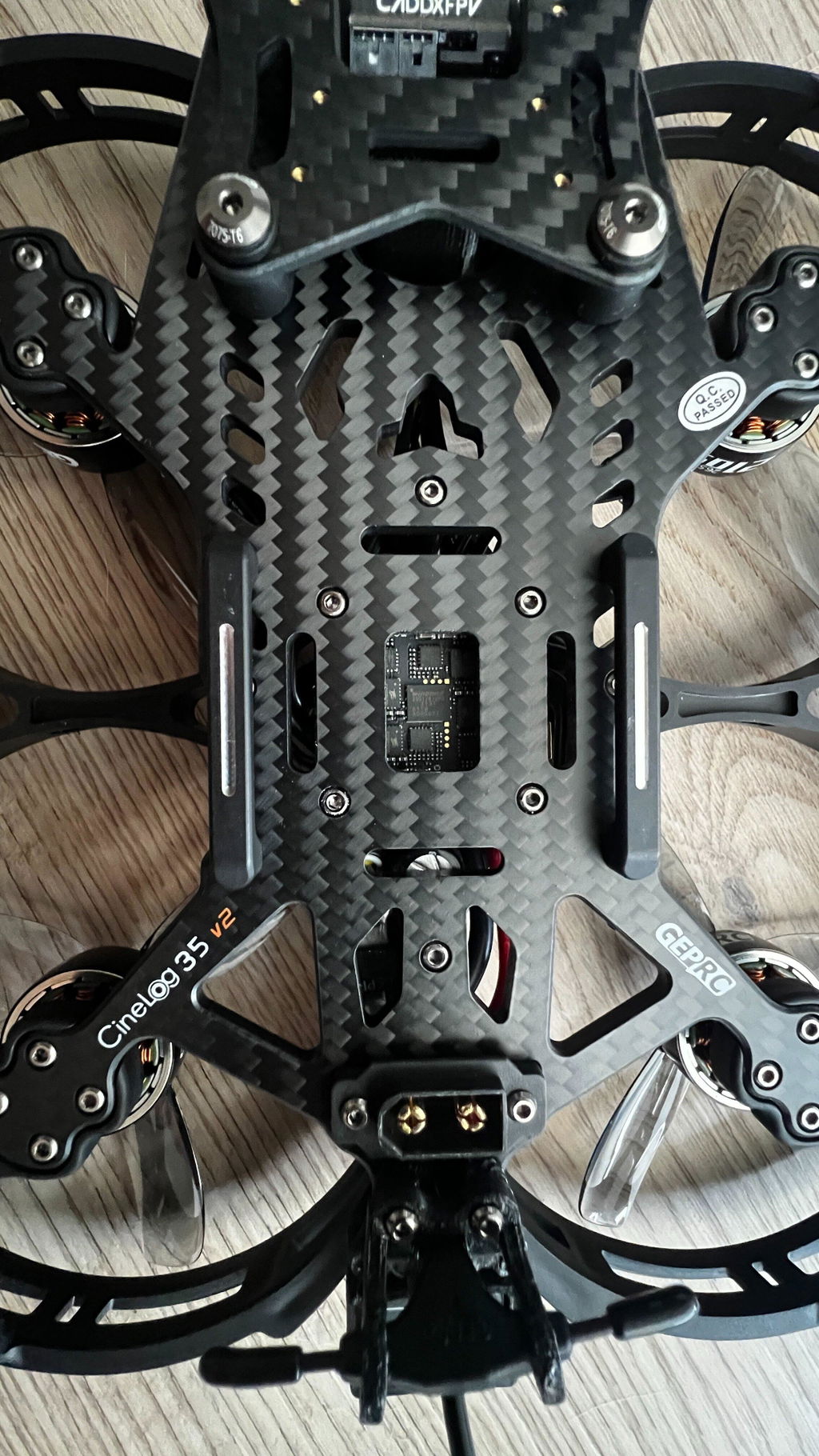

The upgraded frame integrates 7075 aluminum alloy columns for enhanced rigidity, combined with a reinforced carbon fiber main plate and a durable injection-molded protection frame. These upgrades greatly improve the drone’s overall stability, safety, and resistance to vibration.

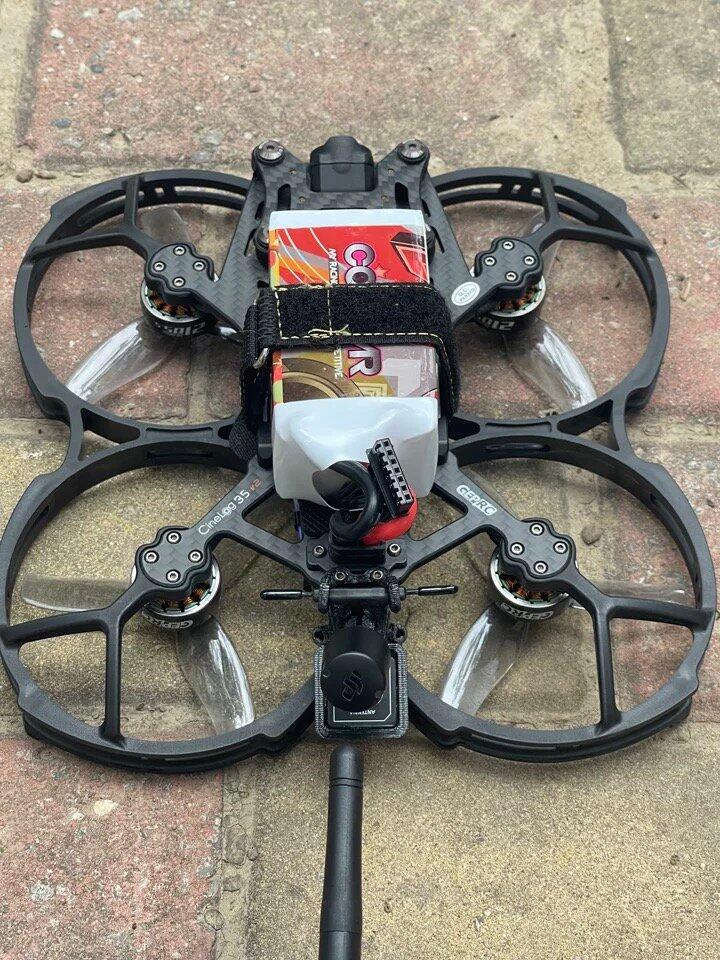

A re-engineered battery mounting system uses high-strength 7075 aluminum components and secure tie straps for a solid, stable hold during dynamic maneuvers. The XT60E1-M power connector is now seamlessly built into the carbon plate, creating a cleaner, more convenient power setup.

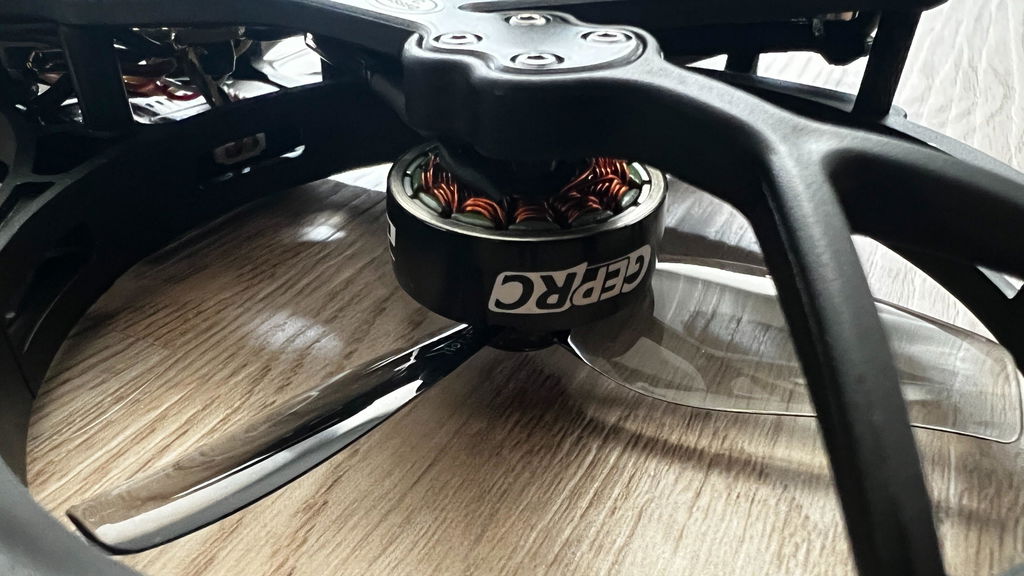

For the O3 Air Unit, the protective frame now includes dedicated memory card and USB ports, allowing easy data access and faster workflow for creators. Equipped with the GEP F722-45A AIO flight controller and the new SPEEDX2 2105.5 motors, the CineLog35 V2 delivers powerful thrust, agile control, and ultra-responsive performance for both cinematic and freestyle flights.

This finely tuned 3.5-inch HD FPV cinematic drone blends cinematic precision, freestyle agility, and flight safety, offering pilots the freedom to capture stunning aerial footage both indoors and outdoors. Every improvement reflects GEPRC’s commitment to excellence — and every pilot’s satisfaction continues to drive our innovation forward.

Features

Includes

1 x CineLog35 V2 Analog

2 x HQProp D-T90MM（2 pairs）

2x M20*250mm battery strap

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M5 wrench

1 x plastic tweezers

1 x Antenna fixed tube (pair)

1 x Keychain

1 x GP Camera Mounting Base

1 x Naked GP Camera Mounting Base

1 x Antenna Mounting Base

Screw package includes:

2x cup head screws M2*18

2x round head screws with pad M2*5.5

1x round head screws M2*12

2x Rivet nut M2

4x round head screws M2*8

4x round head screws M2*7

4x round head screws M2*6

2x round head screws M2.5*6

2x hexagonal screw M1.6*8

1x Flange nuts M5

2x Press Rivet Nuts_Brass color M2*1.9-OD4.9

2x Iron nut M2

2x Iron nut M2

2x Camera gimbal shock absorbing rubber
