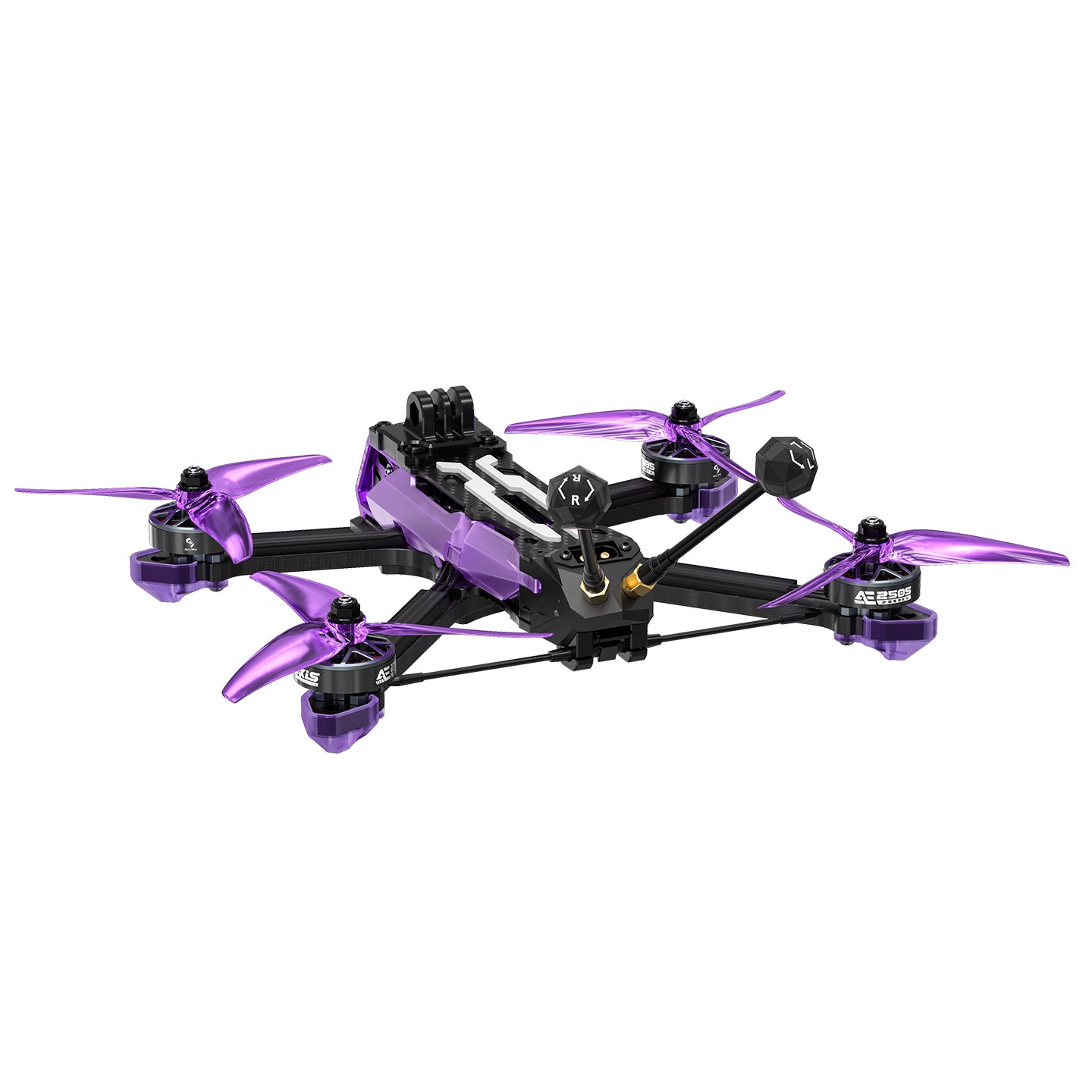

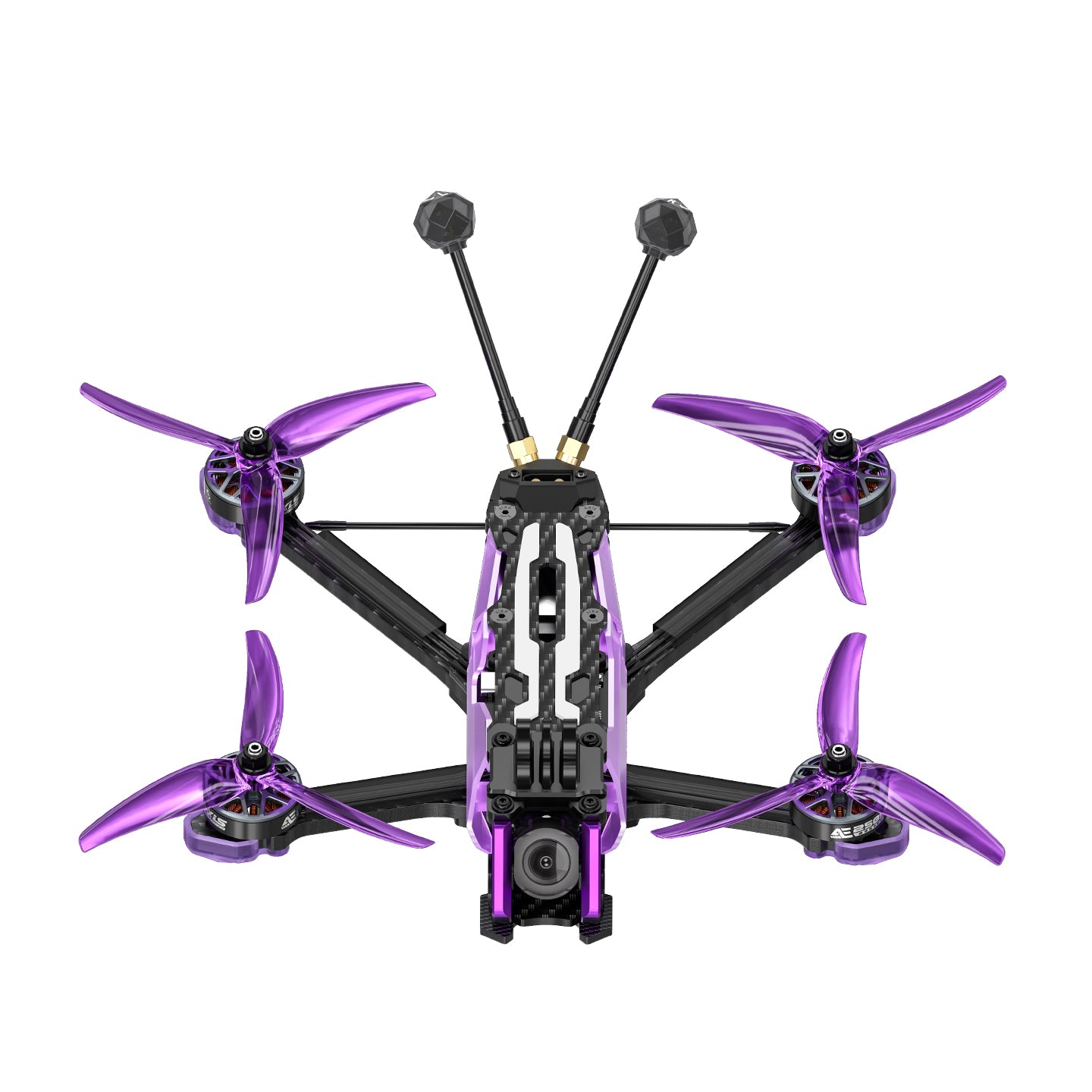

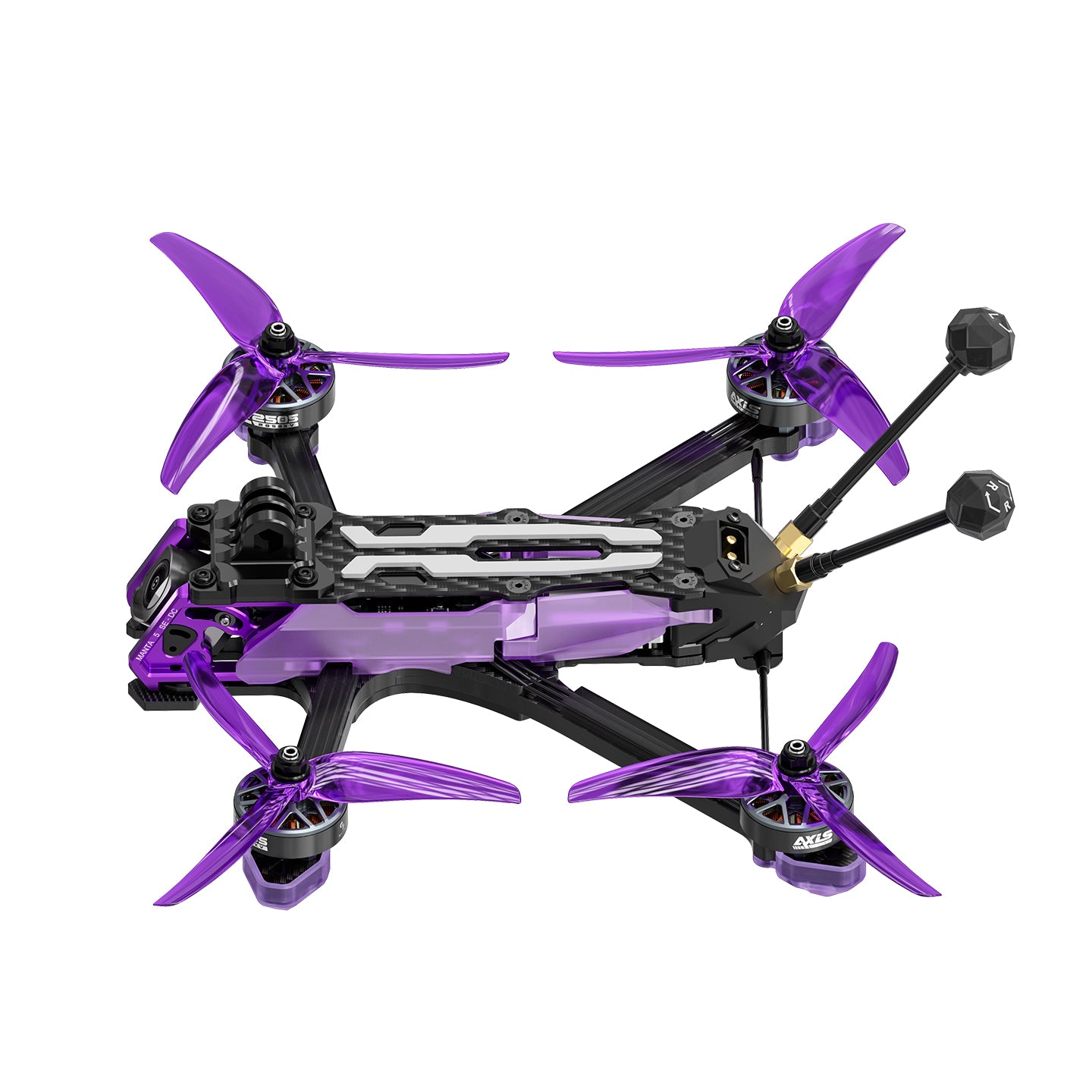

5" Axisflying MANTA 5 SE V2 FPV Drone, O4 Pro / Analog, GPS, ELRS 2.4G
Within 15 Days
We provide all the FPV parts of this item. Please select FPV / Color Green(FPV) / FPV Parts. Including Frames, Accessories, 3D Printed Parts, Propellers, Motors, Camera, VTX, Electronics, Receivers, Antenna. If you want it, pls contact us via chatbox.
Specifications:
- Model: Manta 5 SE V2
- Frame: Axisflying Manta 5 SE V2 (Compatible with DJI O4 Lite and O4 PRO VTX)
- Wheelbase: 223mm
- VTX: Axisflying Smurfs V2 5.8G 1.6W / DJI O4 Pro
- Antenna: Prism V2
- Resolution: (Analog) 1200TVL/720P, (DJI O4 Pro) 4K 120fps
- Weight: 410g
- Flight time: Wide X: 5-8 min / DC: 5-10 min
- Upper plate thickness: 2mm
- Middle plate thickness: 3mm
- Bottom plate thickness: 3mm
- Arm plate thickness: 5.5mm
- FC System: Axisflying H743 PRO
- ESC: Axisflying Argus ECO ESC 60A-6S (32 Bit)
- Gyroscope: Dual Gyroscope ICM-42688-P
- Motor: AE2207 V2-1960KV 6S
- Propellers: BB39 Blue
- Power Connector: XT60
- Receiver: ELRS 2.4G
- GPS: Yes
- Recommended Battery: LIHV/Lipo 1050-1550mAh 6S
Notice: The analog version has only one image transmission antenna, while the high-definition version has two image transmission antennas.
Manta5 SE V2 Analog FPV
Manta5 SE V2 O4 Pro
Includes
Product Detail
Videos
Related Manta 5 SE V2 FPV from Levaplus social media.
You can select the related replacements in this section. We provide the battery, remote controller, goggles and etc.
